Corona, Thermal & Acoustic Imaging Equipment
UV corona cameras, thermal imagers, and acoustic imaging tools for high voltage inspection, partial discharge detection, and electrical predictive maintenance.
Most electrical failures give warning signs before they become outages. Corona discharge degrades insulators and hardware silently. Hot spots build in connections and components over time. Partial discharge quietly weakens insulation. The right imaging tools make these invisible problems visible — without taking equipment out of service. ProgUSA supplies UViRCO corona cameras and FOTRIC thermal and acoustic imaging instruments to utilities, electrical service providers, and industrial facilities across the United States, backed by application support, training, and service from our Florida tech center.
What corona, thermal, and acoustic imaging covers
- Corona and partial discharge detection on live high voltage equipment
- UV imaging of electrical discharges on transmission lines, substations, and switchgear
- Infrared thermographic inspection of electrical apparatus
- Acoustic imaging for partial discharge detection and compressed gas leak detection
- Combined UV, thermal, and visible inspection in a single instrument
- UAV-mounted imaging for aerial line and substation inspection
- Fixed-mount corona monitoring for continuous substation surveillance
- AI-assisted fault recognition and automated discharge classification
Common applications
Where this equipment is used
- Transmission line inspection for corona, arcing, and hardware degradation
- Substation inspection for discharge activity and thermal anomalies
- Distribution line fault detection and line washing assessment
- Gas insulated switchgear (GIS) partial discharge screening
- HV motor and generator winding inspection
- Transformer and switchgear thermal condition assessment
- Predictive maintenance programs for utilities and industrial facilities
- Aerial inspection using UAV-mounted camera systems
- Electrical service contractors supporting utility maintenance
CoroCAM by UViRCO Technologies
CoroCAM by UViRCO Technologies offers HD corona imagers (handheld cameras) for precision detection of corona on substation and transmission lines and insulators. Overlay clear corona image on top of visual image on CC6HD and CC7HD. CC8HD model adds hi-res thermal imaging as well.
Model CC6HD is the latest addition with HD technology, wide-angle viewing, best IFOV, and zoom that tracks visible and UV images. It features a variable angle large LCD display with sunscreen.
- Solar blind UVc imaging for daytime corona detection
- HD visible camera with precise UV-visible overlay at all zoom levels
- Best instantaneous field of view (IFOV) in class
- Wide-angle viewing with variable angle large LCD display with sunscreen
- Integrated GPS
- Supports EPRI maintenance priority rating methodology
- Suitable for transmission, substation, distribution, and consumption inspection
- 18mo warranty. Extensions available.
Model CC7HD is the latest addition with HD technology, wide-angle viewing, best IFOV, and zoom that tracks visible and UV images. It features a variable angle large LCD display with sunscreen.
Model CC8HD is the latest addition with HD technology, wide-angle viewing, best IFOV, and zoom that tracks visible and UV images. It features a variable angle large LCD display with sunscreen.
CC8HD
CC7HD

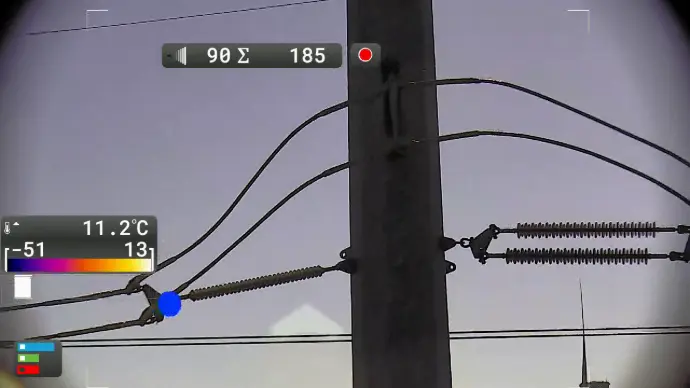

Model UVS1+1
Adds survey capability to co-locate IR and UV disturbances for accurate mitigation decisions. The UVS1 is the latest lightweight corona/optical sensor in the market. Less than 2 lbs and draws power from drone. UVS1+1 model now available with thermal IR module mounted on std UVS1. Gremsy special gimbal available.
UVS1 +1
UAV Cameras
UViRCO CoroCAM 8HD UAV
Aerial Inspection System A UAV-mounted version of the CoroCAM 8HD, sized and balanced for standard commercial gimbal designs and enterprise-grade UAVs. Enables aerial inspection of transmission lines, substations, and hard-to-reach overhead hardware from multiple angles without requiring outages. Key capabilities:
- Combined thermal IR, solar blind UV, and visible camera on one UAV payload
- Fits standard commercial gimbal designs
- Remote control via standard radio controller
- Allows inspection from multiple directions on overhead hardware
- Enables EPRI-based maintenance priority assessment from the air
- Quick installation on UAV or tripod
POWER UTILITIES can use CoroCAMs for a variety of tasks related to the physical hardware, from installation qualification to contamination assessment to maintenance priority assignment along the entire electrical supply chain, from generation to consumption.
GENERATION: Degraded insulation on windings of generators or motors results in reduced efficiency. Partial discharges occurring at these points also cause further damage. During maintenance shutdown, CoroCAMs can be used to inspect the disassembled & energized rotor or stator for discharges.
TRANSMISSION: Various Transmission Line hardware can become sources of electrical discharges and may be susceptible to damage by the corona phenomenon. The necessity for line washing may be indicated by surface arcing.
DISTRIBUTION: Distribution Line hardware are less likely to have detectable corona, but arcing and sparking line faults are just as probable. The necessity for line washing may be indicated by surface arcing.
SUBSTATION: Various Substation hardware is susceptible to electrical discharges. The necessity for substation washing may be indicated by surface arcing.
CONSUMPTION: The consumption of electricity in various faulty devices can lead to electrical discharges. In many cases, the air ionization may be detrimental to humans nearby.
ProgUSA has integrated the new UViRCO Model UVS1 compact HD corona camera on the DJI M300 drone and the WISPR Ranger Pro 1100 drone, which is US-made and NDAA compliant.
Infra Red (IR) Imaging Plus Acoustic
FOTRIC FOTRIC Thermal Cameras — P Series and V Series Professional-grade thermal imaging cameras for electrical apparatus inspection, predictive maintenance, and condition assessment. High-resolution infrared detectors with advanced AI-assisted diagnostics, structured inspection routing, and comprehensive reporting software. Suited for utility substation inspection, switchgear, transformers, and industrial electrical systems.
Key capabilities:
- Up to 640×480 thermal resolution
- NETD sensitivity for detection of subtle temperature differences
- AI-assisted fault recognition and anomaly highlighting
- Delta-T diagnostics and structured inspection routing
- Multiple interchangeable lens options
- NaviTR inspection management software
- IRExplorer remote access via web browser
- AnalyzIR comprehensive reporting software
- Two-year warranty with U.S. service in San Jose, CA

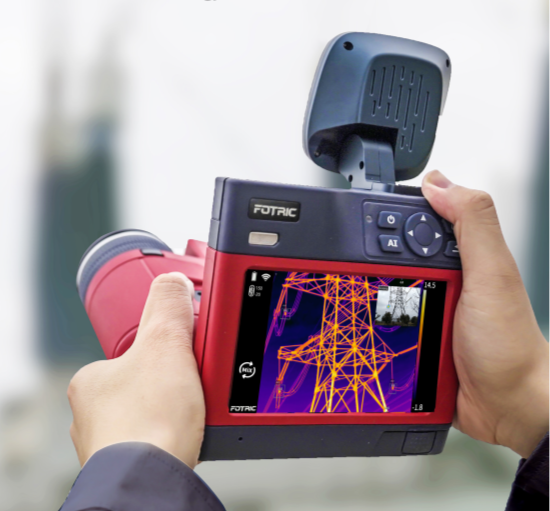

New combo thermal and acoustic camera – RP7R1H is here and details in the brochure below.

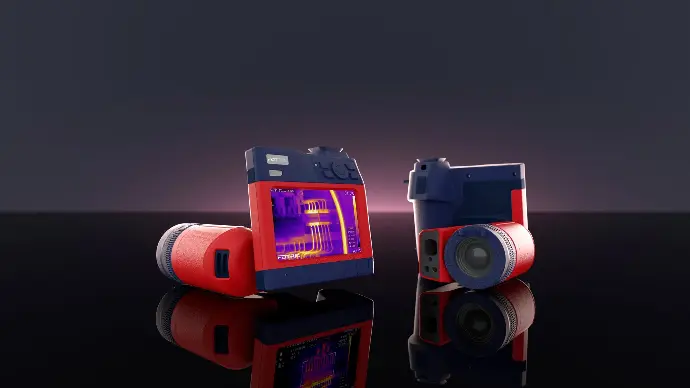

FOTRIC P7

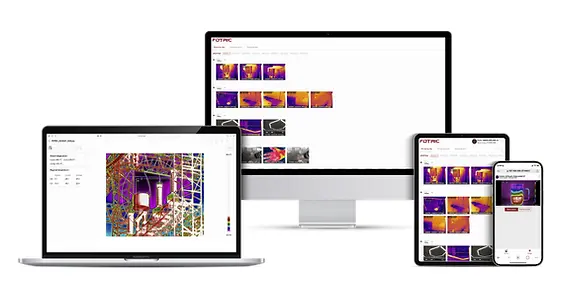

Utilizing suitable image analysis and reporting software can have a transformative impact on your business. It simplifies problem understanding for customers and instills trust in the effectiveness of your solutions. FOTRIC NaviTiR System is an AI-infused digital upgrade from the traditional thermal camera. It perfectly assists thermal inspectors on every link of their assignment, from preparation to presentation. FOTRIC IRExplorer is a powerful cross-platform Analysis System that enables remote access and control of FOTRIC thermal cameras through a web browser on various devices, including Mac, Windows, ios, Android, and Linux via WiFi.FOTRIC AnalyzIR is a comprehensive analysis software designed to optimize thermal analysis and reporting processes to enhance inspections’ efficiency and accuracy.

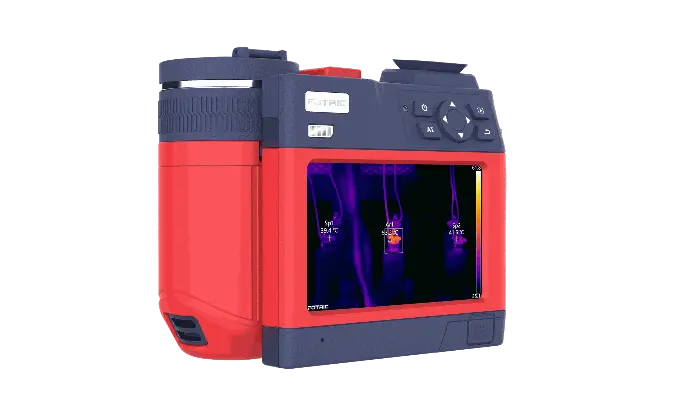

FOTRIC P7

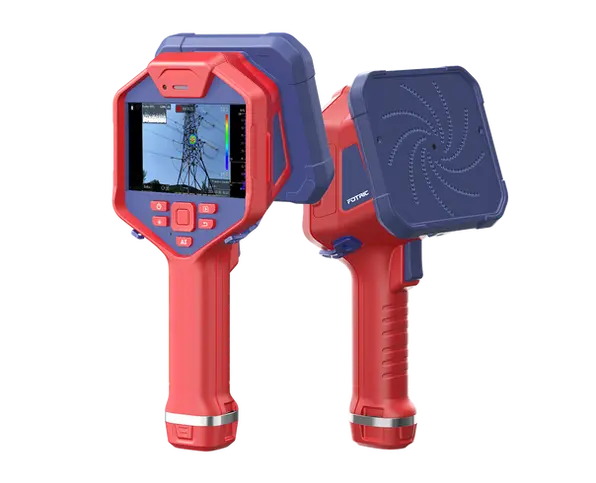

FOTRIC Launches H7: The World’s Most Advanced Handheld Acoustic Imaging Camera
FOTRIC proudly unveils the H7 Handheld Acoustic Imaging Camera, a groundbreaking leap in acoustic inspection technology. Powered by a record-breaking 345 MEMS microphone array—the highest mic count in the world—and an extended detection range of up to 300 meters, the H7 redefines what’s possible in long-range acoustic imaging.
Unmatched Detection Power — See What Others Can’t Hear
With its ultra-dense 345-microphone array, the H7 delivers extraordinary sensitivity and localization accuracy, allowing professionals to detect faint leaks, subtle vacuum losses, and early-stage partial discharges (PD) that traditional tools simply miss. From vast factory floors to high-voltage substations, the H7 captures acoustic detail with unrivaled clarity and precision—even from hundreds of meters away.
FLIR Thermal and Acoustic Imaging
ProgUSA is an authorized distributor of FLIR thermal and acoustic imaging products for electrical inspection, predictive maintenance, and condition monitoring. The FLIR T-Series cameras cover a full range of resolution and budget requirements — from entry-level field tools to flagship inspection platforms. The Si2-PD acoustic imager extends your diagnostic capability to partial discharge detection, where traditional thermal cameras cannot reach.
FOTRIC P7
FLIR T865
Power, Precision, Clarity
The T865 is the flagship of FLIR's T800-Series — built for professionals who need the highest level of thermal performance for electrical and mechanical inspection. With 640 × 480 resolution and accuracy as good as ±1°C/±1%, it delivers the detail and precision required to make confident, data-driven decisions on critical equipment. The 180° rotating optical block lets you safely scan overhead gear, energized panels, and hard-to-reach components without repositioning, while continuous laser-assisted autofocus and 1-Touch Level/Span keep measurements sharp and efficient. Pair it with a FlexView dual FOV lens to switch instantly from wide-area scanning to telephoto without changing glass, or add the optional 6° telephoto lens for precise targeting at extended distances. Built-in FLIR Ignite Wi-Fi uploads imagery directly to the cloud for reporting and documentation.
Key capabilities:
- 640 × 480 thermal resolution (UltraMax enhancement)
- <30 mK NETD, temp range −20°C to 650°C
- Accuracy ±1°C/±1%, 180° rotating optical block
- Continuous laser-assisted autofocus
- 1-Touch Level/Span
- FlexView dual FOV lens compatible
- 6° telephoto lens option
- Inspection Route mode
- FLIR Ignite cloud upload
- 4" LCD touchscreen with eyepiece viewfinder
- 64 GB internal memory, IP54.
FLIR T560
Unmatched Resolution. Professional Results.
The T560 delivers 640 × 512 thermal resolution in FLIR's ergonomic T500-Series body — a strong choice for professionals who demand high image quality and reliable temperature data without stepping up to the T800-Series price point. Its 180° rotating optical block handles overhead and awkward angles with the same ergonomic comfort as the T865, and the FlexView dual FOV lens lets you cover wide areas and zoom in on targets without a lens swap. On-camera tools including 1-Touch Level/Span, laser-assisted autofocus, and FLIR Vision Processing (MSX + UltraMax) keep data accurate and images sharp. Inspection Route mode integrates with FLIR Thermal Studio Pro for pre-planned survey workflows, and GPS tagging embeds location data directly into every image.
Key capabilities:
- 640 × 512 thermal resolution (307,200 radiometric pixels
- UltraMax enhancement)
- <30 mK NETD, temp range −20°C to 650°C
- ±2°C/±2% accuracy, 180° rotating optical block
- FlexView dual FOV lens compatible, continuous laser-assisted autofocus
- 1-Touch Level/Span, FLIR Vision Processing (MSX + UltraMax)
- Inspection Route mode, GPS tagging, METERLiNK compatible
- FLIR Ignite cloud upload
- 16 GB internal memory, IP54.
FLIR T540
The T540 brings 464 × 348 thermal resolution into FLIR's ergonomic T500-Series platform — a capable mid-tier option for electrical and mechanical survey work where image detail matters and budget is a consideration. It carries the same core workflow tools as the T560: Inspection Route mode for pre-planned survey routes, continuous laser-assisted autofocus, 1-Touch Level/Span for fast contrast optimization, and FlexView dual FOV lens compatibility for quick wide-to-telephoto switching. Built-in Macro Mode extends its usefulness to close-up inspection of small components, connection points, and terminations.
Key capabilities:
- 464 × 348 thermal resolution (UltraMax enhancement to 645
- 888 effective pixels), <30 mK NETD, temp range −20°C to 650°C
- ±2°C/±2% accuracy, continuous laser-assisted autofocus
- 1-Touch Level/Span, FlexView dual FOV lens compatible
- Built-in Macro Mode, Inspection Route mode
- FLIR Ignite cloud upload.
FLIR T530
The T530 is the entry point into FLIR's professional T500-Series — designed for field technicians who need reliable thermal data in a portable, ergonomic body. At 320 × 240 IR resolution with UltraMax enhancement (up to 307,200 effective pixels), it provides solid temperature measurement across panels, switchgear, motors, and mechanical systems where finding the hot spot is the primary objective. The 180° rotating optical block handles overhead and hard-to-reach targets without repositioning, and continuous laser-assisted autofocus keeps your image sharp on the fly. Inspection Route mode and FLIR Ignite cloud upload come standard, so survey data stays organized from the field to the report.
- 320 × 240 IR resolution (UltraMax up to 307,200 effective pixels)
- <30 mK NETD, temp range −20°C to 1200°C (calibration-dependent)
- ±2°C/±2% accuracy, 180° rotating optical block
- Continuous laser-assisted autofocus, 1-Touch Level/Span
- FlexView dual FOV lens compatible, Inspection Route mode
- FLIR Ignite cloud upload.
FLIR Si2-PD
Find Problems You Can't See. Fix Them Before They Cost You.
The Si2-PD is purpose-built for detecting, locating, classifying, and assessing partial discharge faults in high-voltage electrical equipment — from up to 200 meters away and without taking equipment offline. Its 124-microphone MEMS array detects and visualizes ultrasonic sound waves in real time, overlaying acoustic data on a 12 MP visual image so you can pinpoint the exact fault location at a glance. On-camera AI automatically assesses severity and recommends actions, so your team can make a repair decision in the field rather than back at the office. Beyond partial discharge, the Si2-PD detects compressed air leaks and vacuum leaks, making it a versatile diagnostic tool across multiple maintenance applications.
Applications: Switchgear and GIS inspection, substation transformer monitoring, transmission and distribution conductor surveys, motor and cable termination inspection, compressed air system leak detection.
Key capabilities:
- 124-microphone MEMS array, 2–130 kHz bandwidth
- detection range 0.3m to 200m (656 ft)
- AI-based on-camera severity assessment with recommended actions
- PD type classification
- 12 MP visual camera (75° FOV)
- 8x digital zoom, 5" touchscreen display, up to 2.5-hour battery
- Wi-Fi + USB-C, IP54, 128 GB internal storage.
Resources & Application Notes
Supporting documentation for corona, thermal, and acoustic imaging applications and instrument selection.
Resource links:
- UViRCO CoroCAM Product Brochures
- FOTRIC Thermal Camera Product Catalog
- FOTRIC AcouTherm Camera Brochures
- EPRI Corona Inspection Methodology Reference
- xCorona inspection training overview — ProgUSA
- Ensuring Safety in Underground Vaults with Acoustic Imaging
- Cost Take Out Acoustics FLIR Value Sheet
- Choosing Thermal Camera App Note
- Acoustic Imaging Solutions and Applications
- TIC in Condition Monitoring Tech Note
Our Vendor Partners
UViRCO
UViRCO Technologies is the original manufacturer of the CoroCAM corona camera, with over 30 years of experience in UV discharge detection. Their CoroCAM product line is the field standard for daytime corona inspection of high voltage transmission lines, substations, and electrical infrastructure. ProgUSA provides U.S. sales, application support, training, repair, and technical support for UViRCO through our Florida tech center.
FOTRIC
FOTRIC is a global manufacturer of advanced thermal and acoustic imaging solutions for industrial inspection and predictive maintenance. Their product line spans professional thermal cameras, combined AcouTherm imaging systems, and dedicated acoustic cameras suited for electrical inspection, partial discharge detection, and gas leak detection.
FLIR
FLIR is the world's leading manufacturer of thermal imaging cameras, with decades of innovation in infrared technology for electrical inspection, predictive maintenance, and condition monitoring. Their T-Series professional cameras set the benchmark for image quality and diagnostic capability across a wide range of resolution and budget requirements. The Si2-PD acoustic imager extends that capability to partial discharge detection in high-voltage equipment — from up to 200 meters away, without contact or outage.
