SF6 Gas Test, Handling & Purifying Equipment
Gas analyzers, recovery units, purification systems, and handling tools for SF₆-insulated switchgear and high-voltage equipment.
SF6 is one of the most potent greenhouse gases known, with a global warming potential nearly 25,000 times that of CO2 and an atmospheric lifetime of up to 50,000 years. At the same time, it remains the dielectric of choice for high-voltage circuit breakers, gas-insulated switchgear, and transmission infrastructure. Properly managing SF6 is no longer optional. It is an operational, environmental, and regulatory requirement. ProgUSA offers a full selection of SF6 analysis, recovery, purification, and handling equipment from RH Systems, Enervac, and Synecom, along with support, training, and service throughout the United StatesProgUSA offers a full selection of SF6 analysis, recovery, purification, and handling equipment from RH Systems, Enervac, and Synecom, along with support, training, and service throughout the United States.
Request Product Guidance Talk to ProgUSA SF₆ Gas Field Reference
What SF6 analysis and handling equipment covers
- SF6 gas quality analysis — moisture, purity, and decomposition products (SO2)
- SF6 gas recovery and reclamation
- Gas purification, drying, and particulate filtration
- Equipment evacuation and refilling
- Gas transfer and consolidation
- Portable and large-scale recovery systems for breakers from 69KV to 750KV
- SF6 gas filling control
- Decomposition detection
- Adapter kits and connection accessories
Common applications
Where this equipment is used

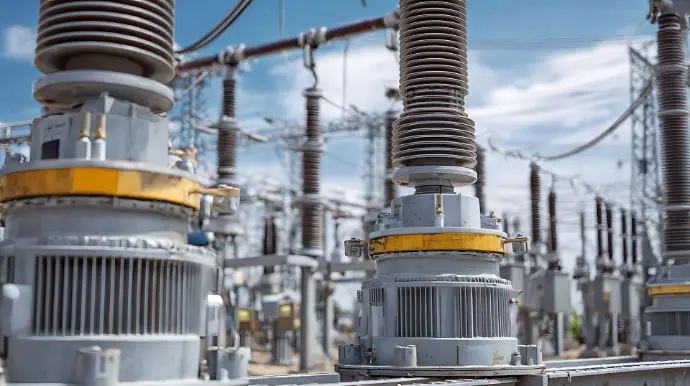

- High voltage circuit breaker maintenance and servicing
- Gas insulated switchgear (GIS) condition assessment
- Utility substation SF6 management programs
- Transmission line SF6 equipment servicing
- Environmental compliance and gas reclamation
- Commissioning and recommissioning of SF6 equipment
- Electrical service contractors supporting utility maintenance

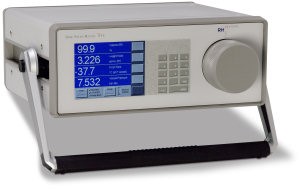

973-SF6
Gas Combo Analyzer by RH Systems
The 973-SF6 by RH Systems is the most accurate and repeatable combo tester in the US market. Utilizing chilled mirror technology, this rugged portable unit provides precise analysis of SF6 gas, measuring H2O, SF6 purity, and SO2 levels, with sample capture and pump-back capabilities.
- Portable and Rugged: Ideal for field use.
- High Accuracy: Chilled mirror technology ensures precise measurements.
- Comprehensive Analysis: Measures H2O, SF6 purity, and SO2.
- Simultaneous measurement of moisture, purity, and SO2 concentration
- Humidity displayed in ppmv, ppmw, and dew/frost point
- Purity displayed in % volume SF6
- Integrated gas recovery system with auto pump back — zero emission operation
- SO2 module field-replaceable in under 30 seconds
- Color touchscreen with automatic and manual operation modes
- Stable storage up to 3 years with no humidity or purity shelf-life concerns
- Compatible with DN8, DN20, and other standard SF6 couplings
[click for application note on “What I have learned about sf6 gas testing” by a ProgUSA engineer]
973-SF6 Gas Combo Analyzer by RH Systems

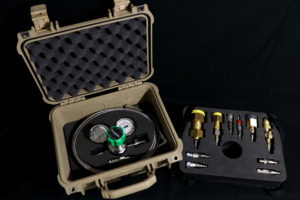

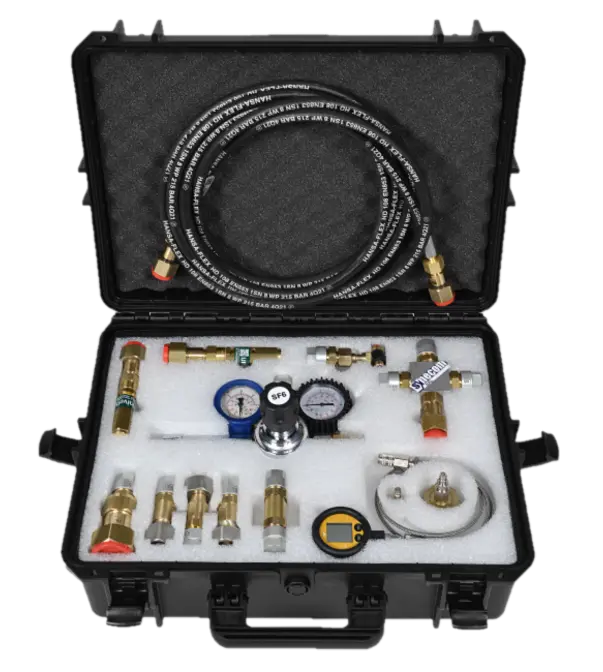

The RH Systems universal SF6 test adapter kit includes DN8, DN20, regulator, test hose, and additional adapters. It is compatible with the RH 973-SF6 analyzer and other SF6 test sets. Also available is a filling kit with a variety of adapters, a 3/8” hose, and a 'golden dry regulator'. Custom adapters are available upon request.
The 3in1 SF6 gas analyzer quickly serviced and calibrated 100% within USA.(Arizona)
Portable SF6 3-in-1 Test Set
The ALY-101 is a portable 3-in-1 SF6 test set measuring moisture, purity, and SO2 decomposition in a single field-ready unit. A unique ceramic sensor design delivers moisture measurement accuracy that outperforms comparable instruments in the same price range. Easy-field-swap calibration modules minimize downtime during calibration cycles — a key advantage for crews that cannot afford extended instrument downtime in the field.
Unique innovative ACTIVE system being ideal for: full Recycling of SF6 gas contained in all equipment sizes. Equipment under test can be in live operation.
- Simultaneous H2O, purity, and SO2 decomposition measurement
- Field-swappable calibration modules for reduced downtime
- Ceramic sensor design for improved moisture accuracy
- Gas storage and pump-back feature to minimize environmental losses
- Rugged transport case with space for adapters
- 24/7 phone support
- ProgUSA is the exclusive U.S. distributor for Synecom
ALY101-05S SF6 Gas AnalyzerVarious size gas recovery and treatment SF6 carts : Air Vacuum, Recovery, Refill and Filtering of SF6 gas, also simultaneous mode operation.
SF6 gas filling control systems also available.
ALY101-05S
Various SF6 Gas Recovery and Treatment CartsWe offer a range of SF6 gas recovery and treatment carts, capable of air vacuum, recovery, refilling, and filtering of SF6 gas, with options for simultaneous mode operation. These systems ensure efficient handling and processing of SF6 gas.
SF6 Gas Filling Control Systems
We provide advanced SF6 gas filling control systems for precise gas management during filling operations.
ACC101-03
ACTIVE System for SF6 Gas Recycling
The innovative ACTIVE system is ideal for full recycling of SF6 gas in all equipment sizes. This system can operate with equipment under live conditions, offering:
- Dehumidification: Removes moisture from SF6 gas.
- Dedusting: Eliminates dust particles.
- Acid Substance Removal: Filters out acidic substances.
- Full Gas Recycling: Meets standards for both operational and shutdown conditions.
- Plug & Play Filter Substitution: Easy filter replacements.
GRU-4 Plus Portable Unit
A portable unit designed for SF6 gas evacuation, drying, particulate filtration to 0.1 microns, and refilling for circuit breakers up to 69KV. Oil-less compressor capable of 500 psi ensures reliable liquefaction even in warm southern U.S. climates. Suited for small volume SF6 equipment and consolidating partially used gas cylinders.
Larger Scale SF6 Gas Handling Systems
ENERVAC offers larger scale systems for handling SF6 gas in circuit breakers up to 115KV (GRU-7) or 230KV (GRU-8). These systems can be configured as large wheeled carts, skids, or utility trailers with extra storage bottles. The size depends on the volume of gas to be processed and the preferred operational hours, related to the speed of the vacuum and fill pumps.

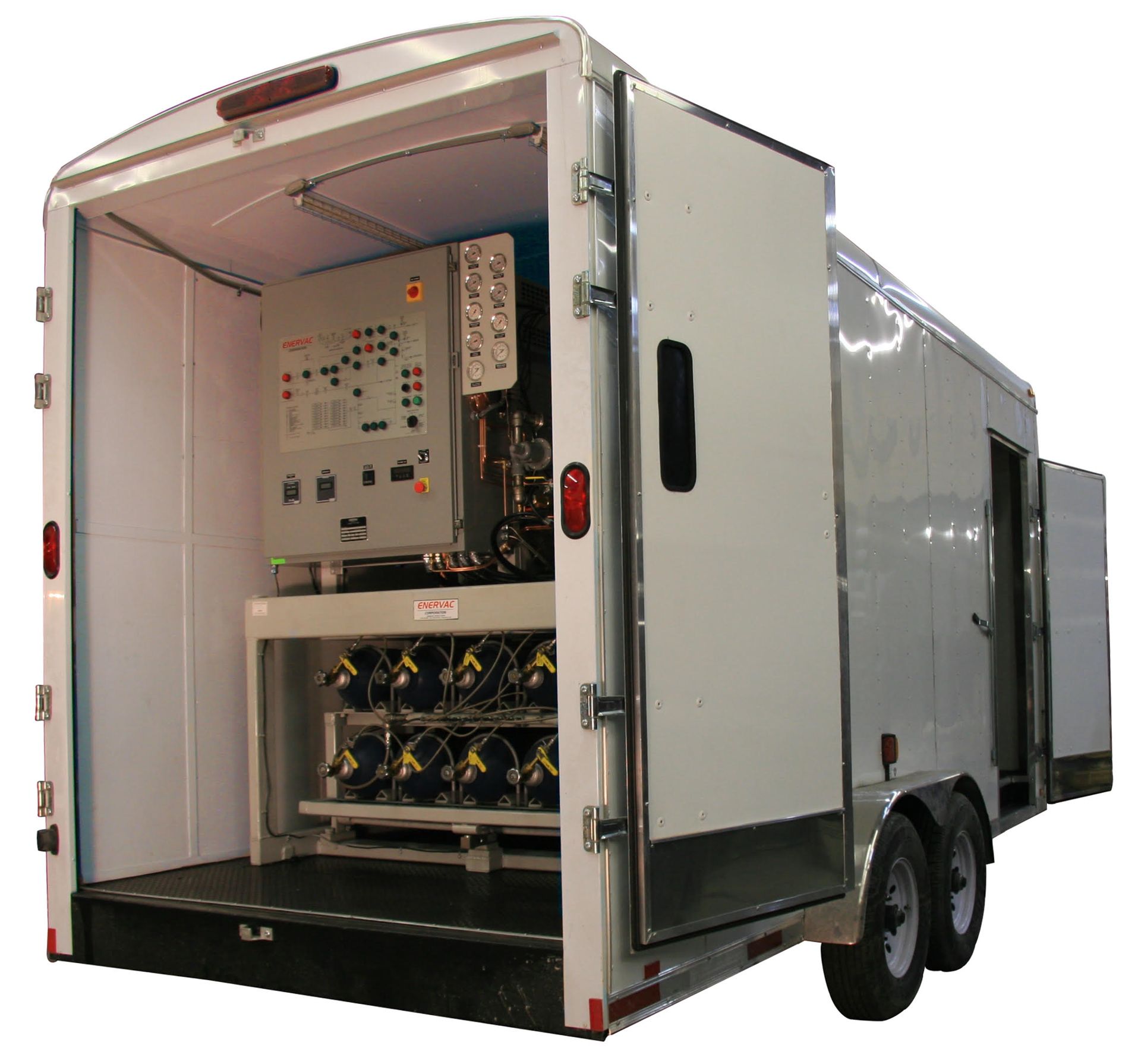

E736A SF6 Gas Handling System
The E736A system from ENERVAC is designed for SF6 gas evacuation, drying, particulate filtering, and refilling for circuit breakers up to 750KV. This system can be scaled to a large utility trailer size, capable of storing up to 4000lbs of gas.

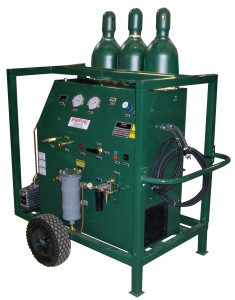

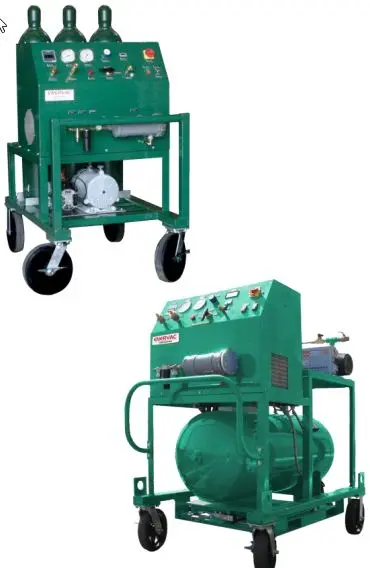

Enervac GRU-7 and GRU-8
Medium and Large Scale Recovery Systems Larger recovery systems for SF6 handling in circuit breakers up to 230KV (GRU-7) and high volume transmission equipment (GRU-8). Available as wheeled carts, skids, or utility trailer configurations depending on gas volume and operational requirements. The GRU-8 delivers better than 99.9% SF6 recovery with unlimited expandable storage through auxiliary tank connections.
Key capabilities:
- GRU-7 suited for breakers up to 115KV; GRU-8 up to 230KV and beyond
- 99.9%+ SF6 recovery rate
- 100% oil-less compressor with 1000:1 compression ratio (up to 1000 psi)
- Onboard storage with optional external tank expansion
- Cart, skid, and trailer configurations available
- Single valve operation for ease of use
The world is yours
Large Scale SF6 Servicing Carts
A large-scale SF6 servicing system for equipment up to 750KV, scalable to utility trailer size and capable of storing up to 4,000 lbs of gas. Supports fully automatic, programmable controller, or manual operation for gas evacuation, purification, re-evaporation, and refilling.
Key capabilities:
- Suitable for SF6 equipment up to 750KV
- Scalable to large utility trailer configuration
- Up to 4,000 lbs onboard gas storage
- Automatic, semi-automatic, or manual operation
- Purification by absorption and removal of decomposition products and moisture
- Filtration to 0.1 microns
Adapter Kits and Accessories
Universal SF6 test adapter kits compatible with the RH Systems 973-SF6 and other SF6 test sets. Includes DN8, DN20, regulator, test hose, and additional adapters. Filling kits and custom adapters are also available.
Key capabilities:
- Universal compatibility with major SF6 analyzers
- DN8, DN20, and custom adapter options
- Filling kit with golden dry regulator available
- Custom adapter configurations on request
Resources & Application Notes
Supporting documentation for SF6 gas testing, handling, and management. Email please contact us.
Resource links:
- What I Have Learned About SF6 Gas Testing — ProgUSA application note
- RH Systems 973-SF6 Product Brochure
- Synecom ALY-101 Product Brochure
- Enervac GRU Series Product Catalog
- SF6 environmental compliance reference materials
RH Systems
RH Systems designs and manufactures precision SF6 gas analyzers for moisture, purity, and decomposition measurement in gas insulated switchgear and high voltage apparatus. The 973-SF6 is the field standard for accurate, zero-emission SF6 gas quality testing.
Enervac
Enervac International ULC has been manufacturing SF6 gas recovery and handling equipment for over four decades. Their GRU and GTU product lines are among the best-selling portable SF6 recovery systems in the world.
Synecom
Synecom produces the ALY-101 portable SF6 3-in-1 test set with field-swappable calibration modules designed to minimize crew downtime. ProgUSA is the exclusive U.S. distributor for Synecom.
ProgUSA support for SF6 analysis and handling equipment
SF6 equipment requires more than a purchase decision. ProgUSA helps customers select the right instruments and systems, understand the application, and keep equipment performing accurately in the field.
Bullets
- Product selection and application guidance
- SF6 analyzer calibration
- Repair and loaner support
- Operator training on safe SF6 handling practices
- Procurement specification support
- Interactive cost justification assistance
