Enervac SF6 Recovery & Transformer Oil Purification Systems
Enervac SF6 Recovery & Transformer Oil Purification Systems
Purpose-built equipment for SF6 gas servicing, transformer oil purification, and insulating fluid maintenance
ENERVAC has been engineering liquid and gas processing equipment for the power industry since 1978 – purposebuilt systems for SF6 gas recovery, transformer oil purification, and insulating fluid management. Their equipment
is in service at utilities, substations, and electrical maintenance operations across North America and worldwide.
ProgUSA is the authorized distributor for ENERVAC in the United States, providing sales, application support, training,
calibration, and repair.
Products:
- SF6 Gas Recovery Units – GRU-4 PLUS, GRU-7 PLUS, GRU-8 PLUS

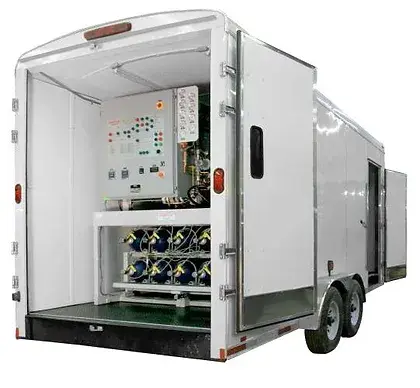

- SF6 Gas Servicing Carts – E736A (up to 750KV, 4,000 lbs storage)
- SF6 Gas Transfer, Storage, and Evacuation Units – GTU PLUS, E736T, ERFU-2
- SF6 Leak Detection
- Transformer Oil Purification Systems – E865A, EHV, E865C (portable)
- ENERDry Transformer Dry-Out Systems
- On-Line Tap Changer Oil Purifier – TFS-2
- Transformer Oil Regeneration – E575R
- Circuit Breaker Oil Purifier – E858M (mobile)
- Filters and Spare Parts

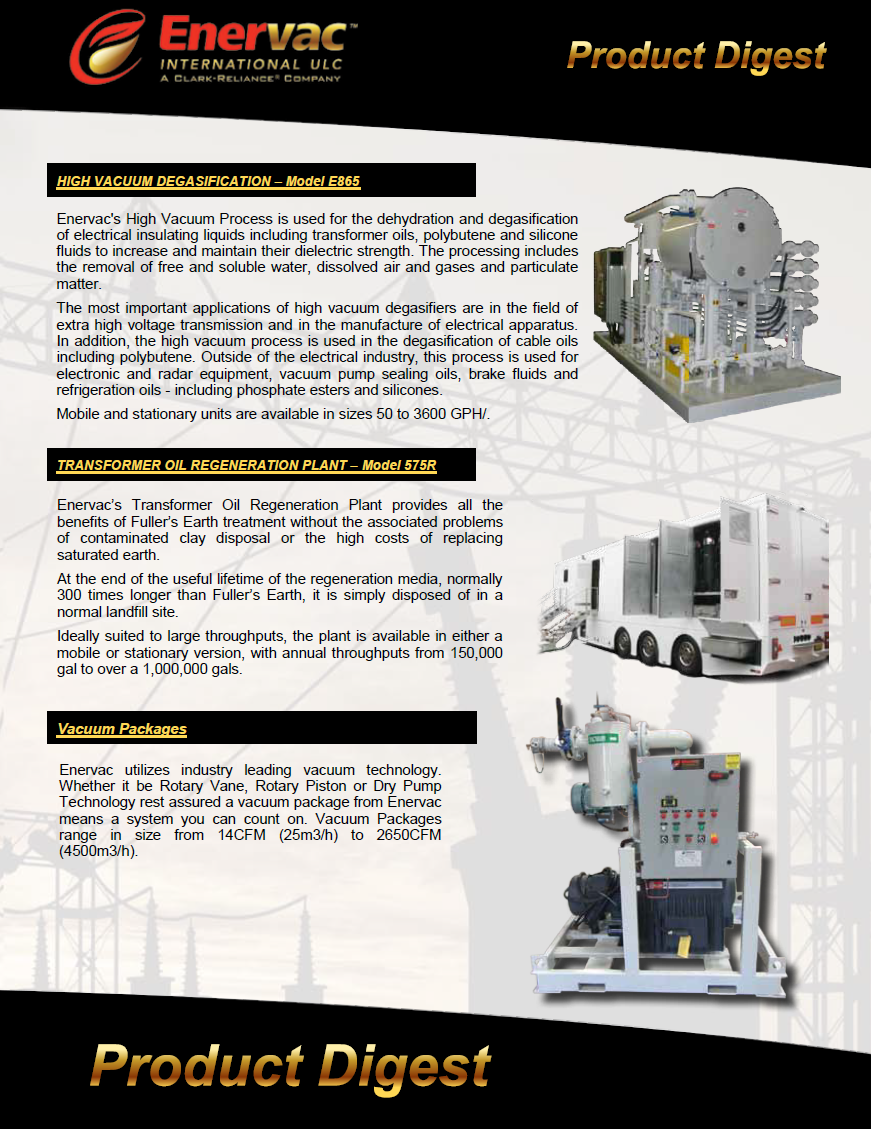

Enervac Product Digest
ENERVAC has built a world-wide reputation for delivering high-performance engineered products that meet or exceed customer needs. In any climate or environment (including hazardous locations), ENERVAC liquid & gas processing and recovery systems provide the most efficient, cost-effective and reliable solutions available in the industry.

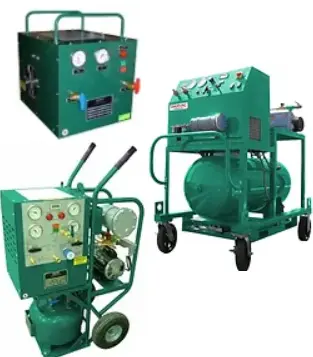

Portable SF6 Recovery (up to 69KV)
GRU-4 PLUS
Oil-less compressor rated to 500 psi for reliable liquefaction in warm climates. Handles SF6 gas evacuation, drying, particulate filtration to 0.1 microns, and refilling for circuit breakers up to 69KV. Suited for small-volume equipment and consolidating partially used gas cylinders.
Medium Scale Recovery (up to 115KV)
GRU-7 PLUS
Wheeled cart configuration for SF6 handling in breakers up to 115KV. 100% oil-less compressor with 1000:1 compression ratio and up to 1000 psi. Optional external tank expansion for added storage flexibility.
Large Scale Recovery (up to 230KV)
GRU-8 PLUS
High-volume system for transmission-class breakers up to 230KV. Better than 99.9% SF6 recovery rate. Available as wheeled cart, skid, or utility trailer. Onboard storage with unlimited expansion through auxiliary tank connections. Single-valve operation for ease of use in the field.
SF6 Gas Transfer Unit
GTU PLUS
Purpose-built for transferring SF6 gas between storage cylinders and equipment without venting. Suitable for consolidating gas from multiple partially filled cylinders into storage for reuse.
SF6 Gas Storage Tank
E736T
Dedicated storage tank for recovered SF6 gas. Used alongside GRU series recovery units when additional on-site storage capacity is required.
SF6 Evacuation & Refill Unit
ERFU-2
Compact unit for equipment evacuation and SF6 refilling. Ideal for smaller-volume maintenance operations where a full recovery unit is not required.
New!
SF6 Leak Detector
Portable SF6 leak detection for identifying leaks in SF6-insulated switchgear and circuit breakers. Essential for SF6 management programs and environmental compliance.
Contact ProgUSA for availability and pricing.

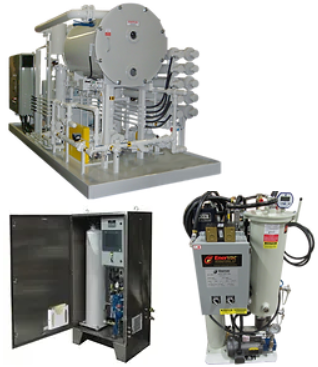

Transformer Oil Purification Systems
Vacuum Process for Dehydration & Degas of Transformer Oils
ENERVAC's high vacuum process for transformer oil purification is used to dehydrate and degasify electrical insulating liquids such as transformer oils, polybutene, and silicone fluids, enhancing and maintaining their dielectric strength. This process removes free and soluble water, dissolved air and gases, and particulate matter.
Key applications of high vacuum degasifiers are in extra high voltage transmission and electrical apparatus manufacturing. Additionally, the process is used for degasifying cable oils, including polybutene, and has applications beyond the electrical industry, such as in electronic and radar equipment, vacuum pump sealing oils, brake fluids, and refrigeration oils, including phosphate esters and silicones. Systems sizes range from large custom semi-trailer mounts with generators to a very portable ‘Mini’ degassifier hand cart for effective temporary degassing.
Transformer Oil Purifier / Degasification
E865A
Standard platform for dehydration, degasification, and particulate filtration of transformer oils and insulating fluids. Removes free and dissolved water, dissolved gases, and particulate matter to restore dielectric strength. Available in configurations from portable carts to semi-trailer mounts.
Extra High Voltage Transformer Oil Purifier
EHV
Configured for EHV transformer oil processing in critical transmission applications where tighter performance specifications apply. Contact ProgUSA for application guidance.
Portable Transformer Oil Purifier / Degasifier
E865C
Compact, portable unit for field use and temporary oil degassing on smaller transformers and in locations where a larger system is not practical.
Transformer Dry-Out System [NEW]
ENERDry
Dedicated transformer dry-out equipment for removing moisture from transformer insulation. Used during recommissioning, after service, or when moisture levels in the insulation system are elevated. Contact ProgUSA for availability.
Transformer Oil Regeneration Plant [NEW]
E575R
Regenerates oxidized or degraded transformer oil to restore its original dielectric and chemical properties using Fuller’s Earth filtration. A cost-effective alternative to replacing large volumes of transformer oil.
ProgUSA Support for Enervac Equipment
Calibration/Repair
ProgUSA supports ENERVAC equipment with calibration, maintenance, and repair services. Contact us to discuss service intervals and current turnaround times.
Procurement Support
We can assist with specification writing, quote documentation, and procurement support for utilities and electrical contractors.
Application Guidance
Not sure whether a GRU-4 PLUS, GRU-7 PLUS, or E736A is right for your breaker voltage class? ProgUSA helps customers select the correct system based on equipment size, volume, and operational requirements. No upselling – just the right recommendation.
Operator Training
ENERVAC equipment is straightforward in the field, but SF6 handling carries environmental obligations. ProgUSA provides operator training on safe SF6 handling practices, environmental compliance, and proper use of recovery and purification equipment.
